# Global Infrastructure

# CloudFront

  • Content Delivery Network (CDN)
  • Improves read performance, content is cached at the edge
  • Improves users experience
  • 216 Point of Presence globally (edge locations)
  • DDoS protection (because worldwide), integration with Shield, AWS Web Application Firewall

Amazon CloudFront Key Features (opens new window)

# Origins

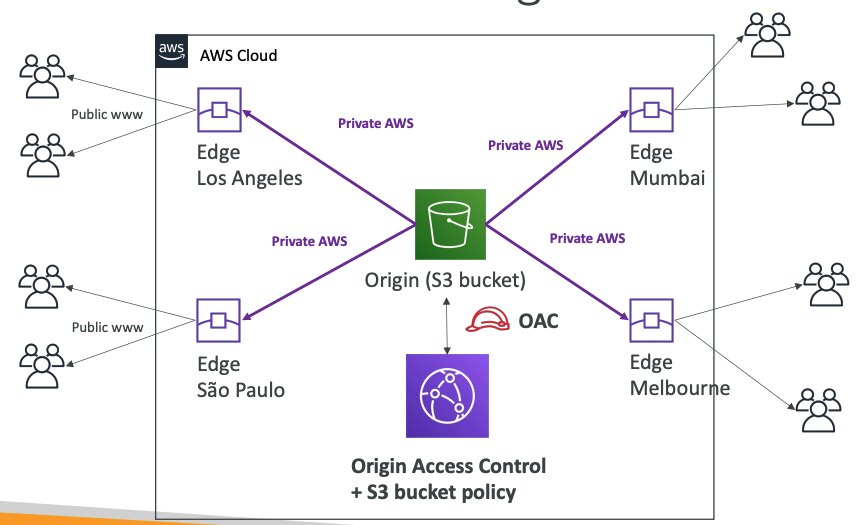

# S3 bucket


  • For distributing files and caching them at the edge
  • Enhanced security with CloudFront Origin Access Control (OAC)
  • OAC is replacing Origin Access Identity (OAI)
  • CloudFront can be used as an ingress (to upload files to S3)

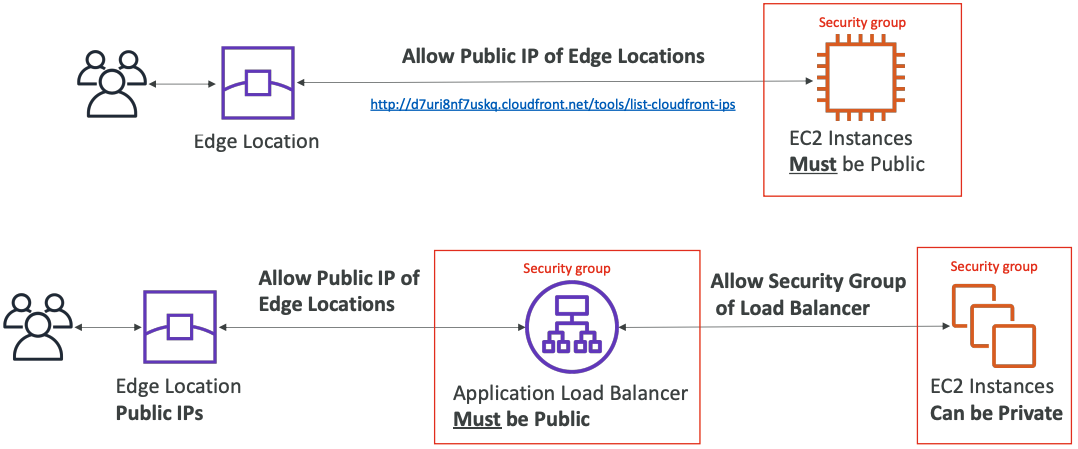

# Custom Origin (HTTP)


  • Application Load Balancer
  • EC2 instance
  • S3 website (must first enable the bucket as a static S3 website)
  • Any HTTP backend you want

# CloudFront vs S3 Cross Region Replication

CloudFront:

  • Global Edge network
  • Files are cached for a TTL (maybe a day)
  • Great for static content that Mustt be available everywhere

S3 Cross Region Replication:

  • Must be setup for each region you want replication to happen
  • Files are updated in near real-time
  • Read only
  • Great for dynamic content that needs to be available at low-latency in few regions

# Geo Restriction

  • You can restrict who can access your distribution
    • Allowlist: Allow your users to access your content only if they're in one of the countries on a list of approved countries.
    • Blocklist: Prevent your users from accessing your content if they're in one of the countries on a list of banned countries.
  • The “country” is determined using a 3rd party Geo-IP database
  • Use case: Copyright Laws to control access to content

# Pricing

  • CloudFront Edge locations are all around the world
  • The cost of data out per edge location varies

Detail CloudFront Pricing (opens new window)

# Price Classes

  • You can reduce the number of edge locations for cost reduction
  • Three price classes:
    1. Price Class All: all regions – best performance
    2. Price Class 200: most regions, but excludes the most expensive regions
    3. Price Class 100: only the least expensive regions

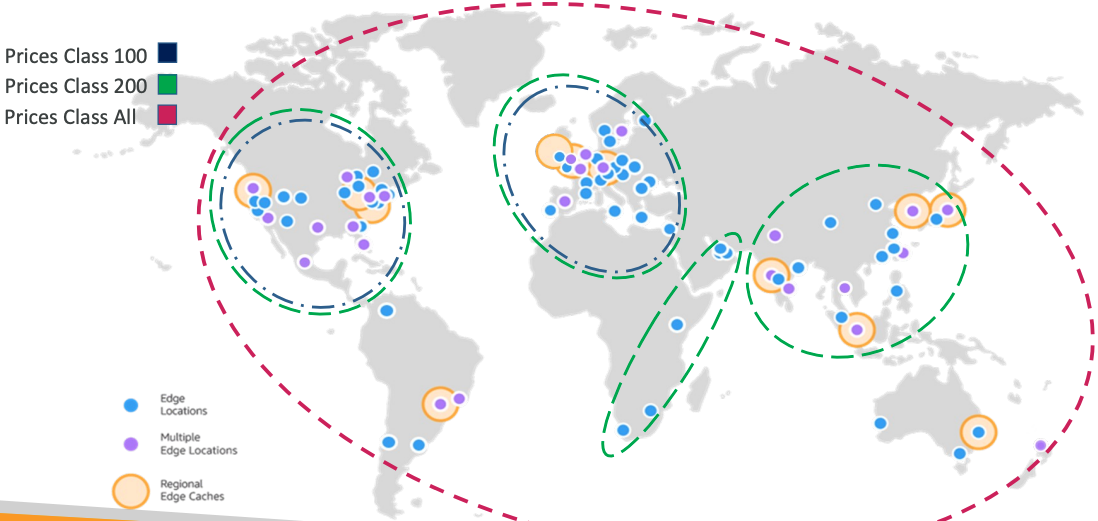

price class

# Cache Invalidations

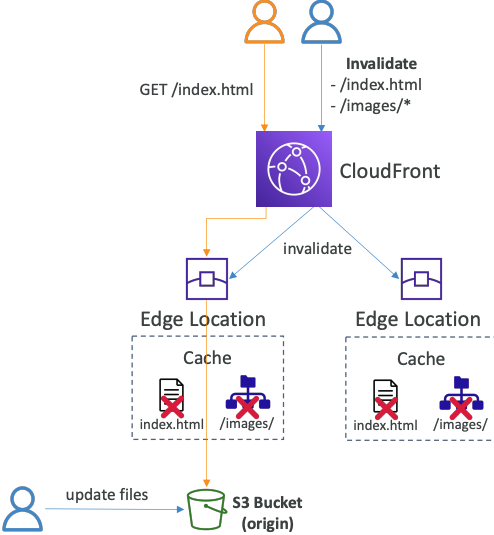

cache invalidate

  • In case you update the back-end origin, CloudFront doesn’t know about it and will only get the refreshed content after the TTL has expired
  • However, you can force an entire or partial cache refresh (thus bypassing the TTL) by performing a CloudFront Invalidation
  • You can invalidate all files (*) or a special path (/images/*)

# AWS Global Accelerator

# Problem

  • You have deployed an application and have global users who want to access it directly.
  • They go over the public internet, which can add a lot of latency due to many hops
  • We wish to go as fast as possible through AWS network to minimize latency

# Unicast IP vs Anycast IP

  • Unicast IP: one server holds one IP address
  • Anycast IP: all servers hold the same IP address and the client is routed to the nearest one

# What?

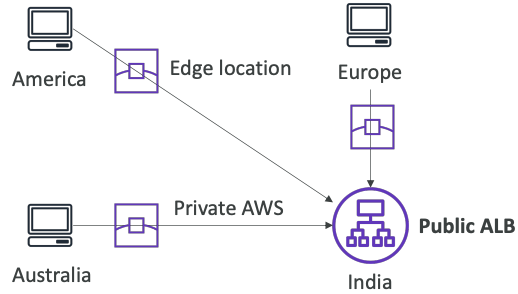

global accelerator

  • Leverage the AWS internal network to route to your application
  • 2 Anycast IP are created for your application
  • The Anycast IP send traffic directly to Edge Locations
  • The Edge locations send the traffic to your application

#

  • Works with Elastic IP, EC2 instances, ALB, NLB, public or private
  • Consistent Performance
    • Intelligent routing to lowest latency and fast regional failover
    • No issue with client cache (because the IP doesn’t change)
    • Internal AWS network
  • Health Checks
    • Global Accelerator performs a health check of your applications
    • Helps make your application global (failover less than 1 minute for unhealthy)
    • Great for disaster recovery (thanks to the health checks)
  • Security
    • only 2 external IP need to be whitelisted
    • DDoS protection thanks to AWS Shield

# AWS Global Accelerator vs CloudFront

  • They both use the AWS global network and its edge locations around the world
  • Both services integrate with AWS Shield for DDoS protection.

CloudFront

  • Improves performance for both cacheable content (such as images and videos)
  • Dynamic content (such as API acceleration and dynamic site delivery)
  • Content is served at the edge

Global Accelerator

  • Improves performance for a wide range of applications over TCP or UDP
  • Proxying packets at the edge to applications running in one or more AWS Regions.
  • Good fit for non-HTTP use cases, such as gaming (UDP), IoT (MQTT), or Voice over IP
  • Good for HTTP use cases that require static IP addresses
  • Good for HTTP use cases that required deterministic, fast regional failover
