# Geo notes

geo-intro - read this (opens new window)

# Zip codes

A ZIP Code is a system of postal codes used by the United States Postal Service (USPS).

https://en.wikipedia.org/wiki/List_of_postal_codes

# Project 3D to 2D

Convert from latitude, longitude to x, y

No exact solution exists There is no isometric map from the sphere to the plane. When you convert lat/lon coordinates from the sphere to x/y coordinates in the plane, you cannot hope that all lengths will be preserved by this operation. You have to accept some kind of deformation. Many different map projections do exist, which can achieve different compromises between preservations of lengths, angles and areas. For smallish parts of earth's surface, transverse Mercator (opens new window) is quite common. You might have heard about UTM (opens new window). But there are many more (opens new window).

The formulas you quote compute x/y/z, i.e. a point in 3D space. But even there you'd not get correct distances automatically. The shortest distance between two points on the surface of the sphere would go through that sphere, whereas distances on the earth are mostly geodesic lengths following the surface. So they will be longer.

# 3D to 1D - Geo hashing

Geohash is a public domain geocode system invented in 2008 by Gustavo Niemeyer which encodes a geographic location into a short string of letters and digits.

https://en.wikipedia.org/wiki/Geohash

https://www.npmjs.com/package/latlon-geohash

# Algorithms

# Dijkstra - find the shortest path

https://www.youtube.com/watch?v=mWNLMg2WxY0&t=4s&ab_channel=%C4%90aIT%E1%BB%9D

# Degree precision versus length

DMS = degrees, minutes, and seconds

decimal places decimal degrees DMS Object that can be unambiguously recognized at this scale N/S or E/W at equator
0 1.0 1° 00′ 0″ country or large region 111 km
1 0.1 0° 06′ 0″ large city or district 11.1 km
2 0.01 0° 00′ 36″ town or village 1.11 km
3 0.001 0° 00′ 3.6″ neighborhood, street 111 m
4 0.0001 0° 00′ 0.36″ individual street, large buildings 11.1 m
5 0.00001 0° 00′ 0.036″ individual trees, houses 1.11 m
6 0.000001 0° 00′ 0.0036″ individual humans 111 mm
7 0.0000001 0° 00′ 0.00036″ practical limit of commercial surveying 11.1 mm
8 0.00000001 0° 00′ 0.000036″ specialized surveying (e.g. tectonic plate mapping) 1.11 mm

https://en.wikipedia.org/wiki/Decimal_degrees

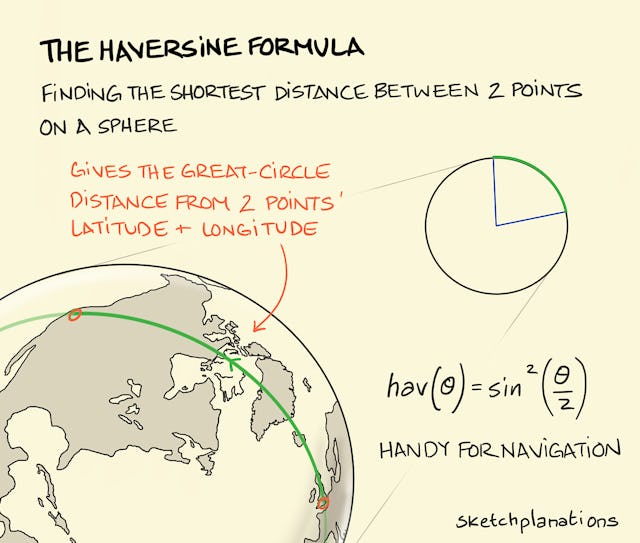

# Haversine formula - find distance between 2 points

formula

a = sin²(ΔlatDifference /2) + cos(lat1).cos(lt2).sin²(ΔlonDifference/2)
c = 2.atan2(√a, √(1−a))
d = R.c

where,

  • ΔlatDifference = lat1 – lat2 (difference of latitude)
  • ΔlonDifference = lon1 – lon2 (difference of longitude)
  • R is radius of earth i.e 6371 KM or 3961 miles
  • d is the distance computed between two points.

https://www.npmjs.com/package/haversine

https://www.npmjs.com/package/geo-haversine

https://www.igismap.com/haversine-formula-calculate-geographic-distance-earth/

// convert coordinates to standard format based on the passed format option
var convertCoordinates = function (format, coordinates) {
  switch (format) {
  case '[lat,lon]':
    return { latitude: coordinates[0], longitude: coordinates[1] }
  case '[lon,lat]':
    return { latitude: coordinates[1], longitude: coordinates[0] }
  case '{lon,lat}':
    return { latitude: coordinates.lat, longitude: coordinates.lon }
  case '{lat,lng}':
    return { latitude: coordinates.lat, longitude: coordinates.lng }
  case 'geojson':
    return { latitude: coordinates.geometry.coordinates[1], longitude: coordinates.geometry.coordinates[0] }
  default:
    return coordinates
  }
}


// convert to radians
var toRad = function (num) {
  return num * Math.PI / 180
}

// main function
var haversine = (function () {
  var RADII = {
    km:    6371,
    mile:  3960,
    meter: 6371000,
    nmi:   3440
  }

  return function haversine (startCoordinates, endCoordinates, options) {
    options   = options || {}

    var R = options.unit in RADII
      ? RADII[options.unit]
      : RADII.km

    var start = convertCoordinates(options.format, startCoordinates)
    var end = convertCoordinates(options.format, endCoordinates)

    var dLat = toRad(end.latitude - start.latitude)
    var dLon = toRad(end.longitude - start.longitude)
    var lat1 = toRad(start.latitude)
    var lat2 = toRad(end.latitude)

    var a = Math.sin(dLat/2) * Math.sin(dLat/2) +
            Math.sin(dLon/2) * Math.sin(dLon/2) * Math.cos(lat1) * Math.cos(lat2)

    var c = 2 * Math.atan2(Math.sqrt(a), Math.sqrt(1-a))

    if (options.threshold) {
      return options.threshold > (R * c)
    }

    return R * c
  }

})()


// usage
const start = {
  latitude: 30.849635,
  longitude: -83.24559
}

const end = {
  latitude: 27.950575,
  longitude: -82.457178
}

console.log(haversine(start, end))
console.log(haversine(start, end, {unit: 'mile'}))
console.log(haversine(start, end, {unit: 'meter'}))
console.log(haversine(start, end, {threshold: 1}))
console.log(haversine(start, end, {threshold: 1, unit: 'mile'}))
console.log(haversine(start, end, {threshold: 1, unit: 'meter'}))

# Geospatial database

# S2 Geometry (Google S2)

https://github.com/radarlabs/s2

https://www.npmjs.com/package/s2-geometry

https://stackoverflow.com/questions/57686995/how-to-perform-the-search-operation-using-google-s2-geometry

I would break this problem up into several steps:

  1. Pick an appropriate S2-Level for your application. In your case, since you're querying by 5 KM radii, I'd pick level 13 cells, that have an average size of 1.27 km^2.
  2. Generate a level-13 cell covering of the 5 KM radius around the person.
  3. Get a level-13 cell from the lat/lng of the car.
  4. Do a contains check of the car S2 Cell to the 5 KM radius S2 Cell covering.
const s2 = require('@radarlabs/s2');

// s2 cell level of ~1.27 km^2
const level = 13;

// cell covering of enclosure around a person
const enclosureLLs = [
  [40.77933906065449, -73.96983146667479],
  [40.77933906065449, -73.9634370803833],
  [40.78483079505022, -73.9634370803833],
  [40.78483079505022, -73.96983146667479],
].map((latlng) => {
  const [lat, lng] = latlng;
  return new s2.LatLng(lat, lng);
});

const enclosureCells = new Set(s2.RegionCoverer.getCoveringTokens(enclosureLLs, { min: level, max: level }));
//-> Set { '89c25894', '89c2589c' }

// arbitrary vehicle lat longs

const vehicle1 = new s2.CellId(new s2.LatLng(40.78340103809933,  -73.96515369415283)).parent(level);
// -> '89c2589c'

const vehicle2 = new s2.CellId(new s2.LatLng(40.782848623761375, -73.95506858825684)).parent(level);
// -> '89c258a4'


console.log(enclosureCells.has(vehicle1.token()));
// -> true

console.log(enclosureCells.has(vehicle2.token()));
// -> false

# Mongodb - 2dsphere Indexes

https://www.mongodb.com/docs/manual/core/2dsphere/

# Oracle's spatial database

https://www.oracle.com/database/spatial/

https://www.oracle.com/autonomous-database/what-is-geospatial-database/

# Postgres - postgis

https://postgis.net/

# Data structure

# Graph-data-structure

https://www.npmjs.com/package/graph-data-structure

# Adapting Radix Trees

https://blog.nlnetlabs.nl/adapting-radix-trees/

# Quadtree

https://www.arangodb.com/2018/01/introduction-geo-indexes-performance-characteristics-part-1/

https://www.youtube.com/watch?v=nsVsdHeTXIE

# GeoJSON

GeoJSON is a format for encoding a variety of geographic data structures.

{
  "type": "Feature",
  "geometry": {
    "type": "Point",
    "coordinates": [125.6, 10.1]
  },
  "properties": {
    "name": "Dinagat Islands"
  }
}

GeoJSON supports the following geometry types: Point, LineString, Polygon, MultiPoint, MultiLineString, and MultiPolygon. Geometric objects with additional properties are Feature objects. Sets of features are contained by FeatureCollection objects.

# AWS

https://aws.amazon.com/blogs/compute/implementing-geohashing-at-scale-in-serverless-web-applications/

# Calculate coordinates of square x miles from center point?

https://gis.stackexchange.com/questions/15545/calculating-coordinates-of-square-x-miles-from-center-point

# Approximation for small areas

If the part of the surface of the earth which you want to draw is relatively small, then you can use a very simple approximation. You can simply use the horizontal axis x to denote longitude λ, the vertical axis y to denote latitude φ. The ratio between these should not be 1:1, though. Instead you should use cos(φ0) as the aspect ratio, where φ0 denotes a latitude close to the center of your map. Furthermore, to convert from angles (measured in radians) to lengths, you multiply by the radius of the earth (which in this model is assumed to be a sphere).

  • x = r λ cos(φ0)
  • y = r φ

This is simple equirectangular projection (opens new window). In most cases, you'll be able to compute cos(φ0) only once, which makes subsequent computations of large numbers of points really cheap.

https://stackoverflow.com/questions/16266809/convert-from-latitude-longitude-to-x-y

# Create a bounding box around the geo point

I have a geo latitude and longitude (ex: 39.6199,-79.9535). How can I build a bounding box around the point with 1km of radius?

The distance between two longitude lines changes according to the latitude line you're on. It can be computed as:

3960 * 2 * pi /360 * cosine(latitude) in miles

The distance between two latitude lines is constant everywhere: 69 miles.

So, in order to draw a square of 1x1 miles around a geographical location you should find the two latitude lines parallel to the latitude of the point with distance 0.5 mile along south and north. Then find two parallel longitude lines with 0.5 miles distance along west and east.

For example, 0.5 mile means 0.5/69 latitude difference.

If the latitude of the given point is 39.6199 then the latitudes of upper and lower sides of the square have latitude values: 36.6199+(0.5/69) and 36.6199-(0.5/69) respectively.

Readmore (opens new window)

# Check if geo-point is inside or outside of polygon

Read more (opens new window)

Nodejs - polygon-lookup (opens new window)

# Tools

https://github.com/pelias/pelias
